Multi-Material. Multi-Color.
Simplified
Efficiency, Redefined
Efficiency, Redefined
Auto-Switching
12
One nozzle per filament
Reduced Waste*
-90%
Optimized filament use
Faster Switching*
+50%
Faster material transitions
Creation, Unbound
Beyond Dimensions
OmniElement™ auto-swapping nozzles + Dual Feeding System deliver 12 preloaded, automatic nozzles. Materials and colors stay separated for zero wait between filament changes.
12
Personalized Combinations Mix colors and materials freely
Supports 0.2, 0.4, 0.6, 0.8 mm nozzles for detailed prints or large infills. One Palette 300 handles multi-dimensional designs from a single device.
0
Manual Changing Preloaded nozzles, ready to print
Color Your World

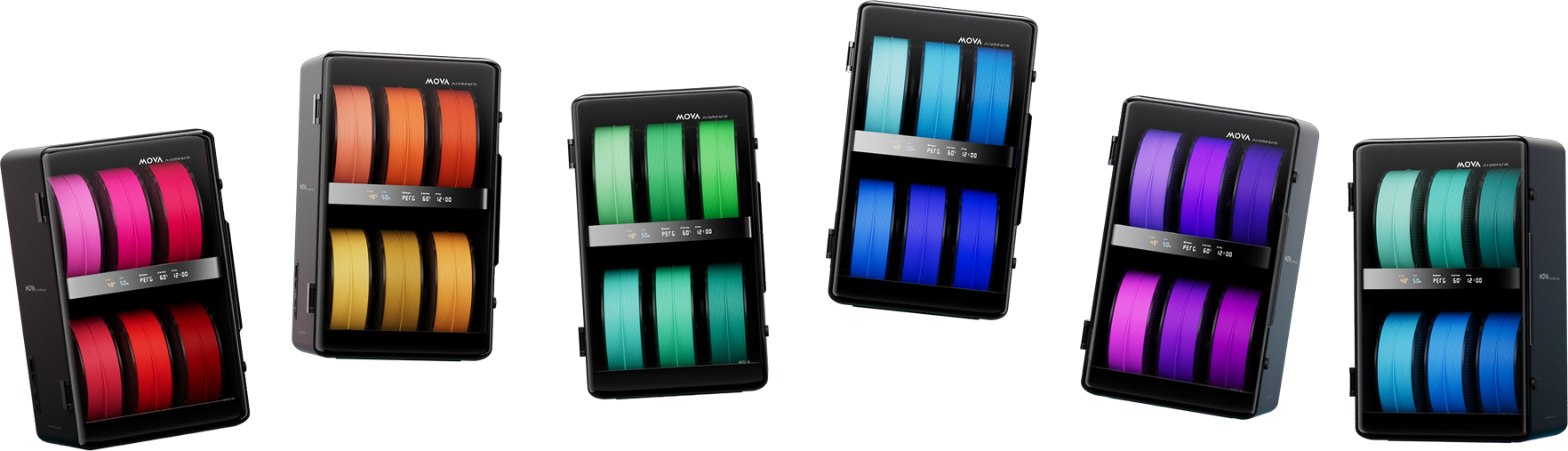

The RFD-6 Multi-Material Management System features 6 independent slots, increasing material capacity by 50% compared to 4-slot configurations.Connect up to 6 RFD-6 units to a single Palette 300 to easily manage 36 different colors.
UP to
36 Colors
Connects 6 RFD-6 units
AtomForm Slicer automates nozzle cleaning and material purging during changes, ensuring every multi-color print.
Explore RFD-6 Filament Box >
Additional
50% Capacity
6 material slots
Integrated Filament Management
Drying + Printing*
Drying Up to 85°C
Auto-Rotate Drying
Temp & Humidity Detection
Automated Dual Venting
Stable, Reliable, and Precise
Stable, Reliable, and Precise
Engineered for Stability
Engineered for Stability
A minimalist design thatstrips away the clutter.
Hardened steel core embeded with a unique ID for auto-matching materials. Wire-free design improves durability and reduces failure points.
Chromium-zirconium copper ensures a leak-proof seal and Z-axis precision. Reaches target temps in 6 seconds through optimized thermal balancing.
Dual-cooling prevents clogs. Magnetic Modular printhead allows for tool-free, "one-click" maintenance.

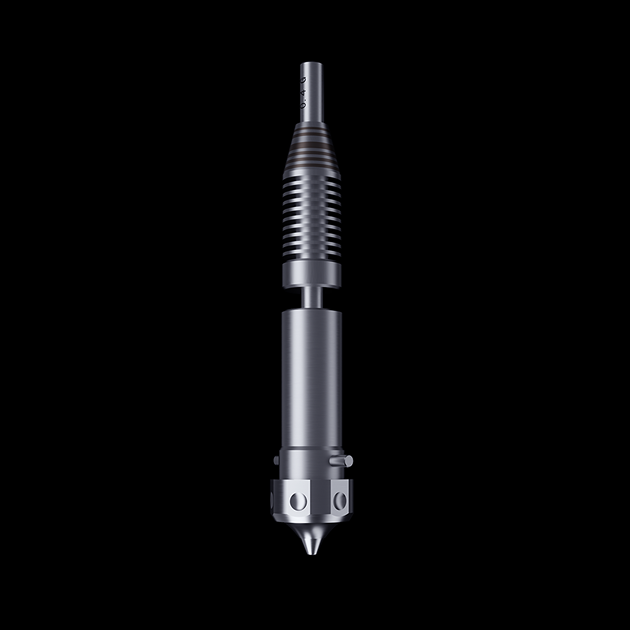

Smart Identification & Durability
Hardened steel core embeded with a unique ID for auto-matching materials. Wire-free design improves durability and reduces failure points.

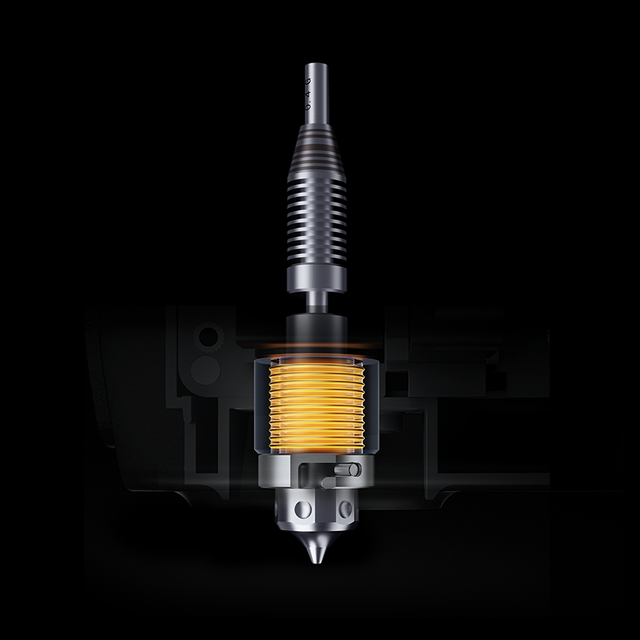

Precision Fit & Quick Heat-Up
Chromium-zirconium copper ensures a leak-proof seal and Z-axis precision. Reaches target temps in 6 seconds through optimized thermal balancing.

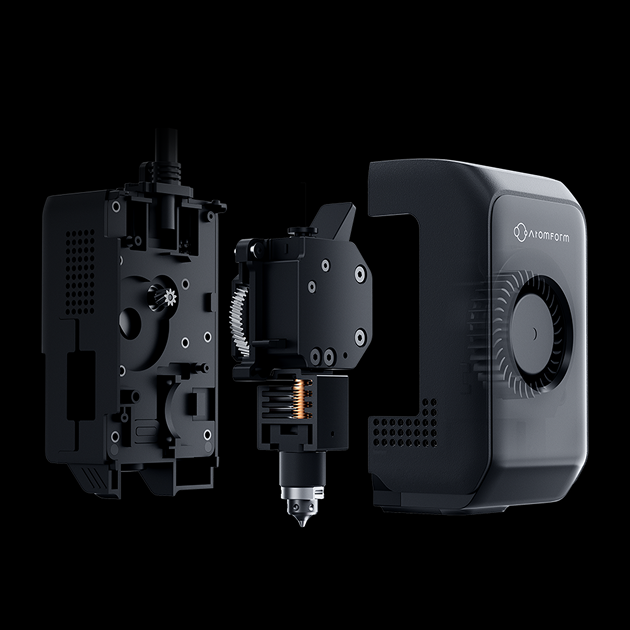

Dual Cooling & Modular Design
Dual-cooling prevents clogs. Magnetic Modular printhead allows for tool-free, "one-click" maintenance.
Intelligent Positioning System
Intelligent Positioning System
Positioning accuracy up to ±0.02mm.*
How We Ensure Precision
How We Ensure Precision
The key is our integrated nozzle design and smart positioning system.
How We Ensure Precision
How We Ensure Precision
The key is our integrated nozzle design and smart positioning system.
Identifies each nozzles' unique attributes from diameter, material, and filament automatically.
Verifies secure nozzle installation through the printhead camera.
Compensates for minor positional deviations through visual calibration.
Faster. Larger. More Versatile
Faster. Larger.
More Versatile
Engineered for High-Speed Printing
Engineered for High-Speed Printing
From drive system to the chassis structure, Palette 300 is engineered for high-speed motion with controlled precision.
Maximum Acceleration
20,000mm/s²
Maximum Printing Speed
800mm/s
Closed-loop feedback corrects position in real time, reducing missed steps and maintaining accuracy at high speed.
Enhances the stability and motion accuracy of the print head and reduces vibration for consistent surface quality
Rigid structure reduces resonance to support stable output during high-speed operation.
FOC Step-Servo Motors
Closed-loop feedback corrects position in real time, reducing missed steps and maintaining accuracy at high speed.
Steel X-Axis Rail
Enhances the stability and motion accuracy of the print head and reduces vibration for consistent surface quality
High-Strength Frame
Rigid structure reduces resonance to support stable output during high-speed operation.
Efficiency in Action
Wide-Ranging
Material Compatibility
Wide-Ranging
Material Compatibility
Supports standard and engineering-grade materials, including PLA, PETG, PC, and PPA.
Create with a Diverse Range of Materials
Big Ideas. One Single Build
Big Ideas. One Single Build
300 x 300 x 300mm³ Build Volume
Print complete multi-material part sets in a single build cycle.
Produce large multi-color models without splitting into multiple sections.
Take a Step Back from Constant Checking
Take a Step Back from Constant Checking
Comprehensive Sensing System
Comprehensive Sensing System
Sensors
53
AI Cameras
4
Fully Automated Setup
Fully Automated Setup
Achieves a level foundation using three independent Z-axis motors. No manual adjustments needed, reducing uneven layers.
Automatically verifies nozzle cleanliness and plate compatibility for accurate extrusion placement.
Real-Time Monitoring
Real-Time Monitoring
Real-time anomaly detection with instant alerts through the AtomForm App.

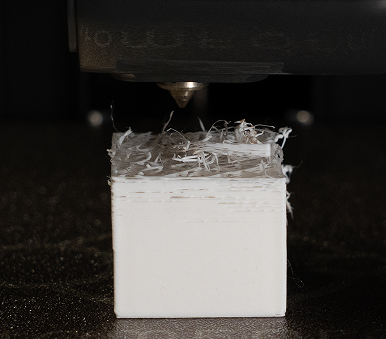

Nozzle Buildup
Warping

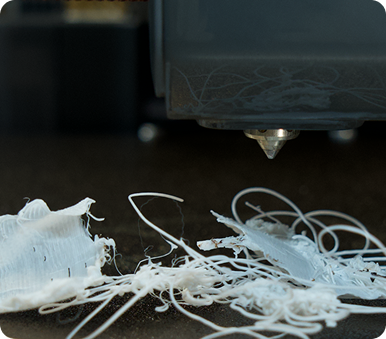

Failed Print Detection (Spaghetti)
AI-Assisted Maintenance
AI-Assisted Maintenance
AI-Powered Maintenance
AI-Powered Maintenance
Provides alerts for filter replacement, lead screw lubrication, and chamber cleaning to maintain system performance.
Automatic pre-print checks ensures nozzle condition, readiness, and build plate compatibility for stable, high-speed printing.
Reliable from the Start
Reliable, Out of the Box
Ready for Every Creator
Safe. Clean. Quiet
Safe. Clean. Quiet
Dual-Activated Carbon and HEPA Filtration
High-efficiency filtration reduces VOCs and fine particles (PM2.5) during printing.
Silent Operation at ≤48dB*
Low operating noise supported by sound-insulated enclosure design.
Local Operation Mode
Optional local operation allows cloud services to be disabled for enhanced data control.
Privacy by Design*
The integrated camera is positioned to monitor the build area only and is not intended to capture the surrounding environment.
AtomForm 3D*: Available for Windows and macOS.AtomForm App*: Available for iOS and Android.
Easily manage multiple print tasks within a centralized queue system. No need to toggle between windows for multiple slicing tasks.
Display printer status in the top bar to avoid switching between device pages.
Master the slicer at your own pace with three skill-based levels. Access pre-set templates with a single click.
Package List
Specification
Printing Technology
Fused Deposition Modeling (FDM)
Printer Dimensions (W x D x H)
462 x 479 x 579mm³
Filament Box Dimensions (W x D x H)
316 x 278 x 507mm³
Build Volume (W x D x H)
300 x 300 x 300mm³
Chassis Material
Aluminum, Polycarbonate (PC), Glass
Maximum Printing Speed & Acceleration
800 mm/s, 25,000 mm/s²
Printing Accuracy
100±0.1mm
Maximum Nozzle Temperature
350°C
Supported Nozzle Diameters
0.2mm, 0.4mm, 0.6mm, 0.8mm
Included Build Plate
Textured PEI Plate
Max. Heatbed Temperature
110°C
Max. Chamber Temperature
65°C
Air Filtration
HEPA Filter + Activated Carbon Filter
Minimum Noise
48dB
Sensors
Chamber Camera, Printhead Camera, Calibration Camera, Nozzle Camera, Filament Runout Sensor, Filament Tangle Sensor, Filament Type Detection
Smart Calibration
Automatic Belt Tensioning, Flow Rate Calibration, Vibration Compensation (Input Shaping)
Bed Leveling
Triple Independent Z-axis Leveling with Probe-Assisted Calibration
AI Detection
First Layer Inspection, Material Buildup Detection, Failed Print (Spaghetti) Detection, Build Plate Recognition
AI Monitoring and Assistance
Power Loss Recovery, Automatic Filament Backup, Timelapse Recording, Internal Chamber Lighting
Supported Filament Types
PLA, PETG, TPU, PVA, BVOH, ABS, ASA, PC, PA, PET, PPS Carbon/Glass Fiber Reinforced PLA, PETG, PA, PET, PC, ABS, ASA, PPA (CF/GF), PPS (CF/GF)
*The product appearance, structure, color, function and other details presented in the promotional materials are for illustration purposes only and may not be an exact representation of the product. Please refer to the actual product for accurate information.
*Zero-Purge: xxxxx
*50% Faster Swaps (50% Faster Swapping): This data applies only to a single color or material change.
*90% Less Waste: This data applies only to a single color or material change.
*Print and dry simultaneously: Due to differences in material thermal stability, simultaneous feeding of PLA and PETG is not recommended while the drying function is active.
*Zero-Wait Delivery: This feature is available when the replacement filament is located on a different feeding layer than the active filament. If both filaments are on the same feeding layer within the RFD-6 system, additional loading time is required.
*positioning accuracy up to ±0.02mm: Accuracy data was measured using clean nozzles. Calibrating with an unclean nozzle could lead to less accurate results.
*Model Filament Usage: Thease datas were obtained by printing with PLA filament and a 0.4 mm standard-flow nozzle, using a 0.2 mm layer height, 200 mm/s outer wall speed, and 250 mm/s infill speed.
*Silent Operation at ≤48dB*: This data was tested from AtomForm Lab using a certified decibel meter, measured at a distance of 1 meter from the machine in standby mode. The result ≤48 dB reflects the typical average operational noise level.
*Privacy by Design: The camera's physical viewing angle is restricted to prevent capturing the surrounding environment outside the printer enclosure.
